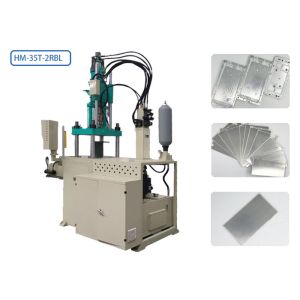

    High Speed Injection Moulding Machine / Vertical Metal Injection Molding Machine

    Ask Lasest Price
    Brand Name : Hommar
    Model Number : HM-35T-2RBL
    Certification : CE,RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 200 pcs per month
    Delivery Time : 35-45 working days
    • Product Details
    • Company Profile

    High Speed Injection Moulding Machine / Vertical Metal Injection Molding Machine

    Phone Backlight Frame Full Auto Injection Machine 2 Cavites 35 Ton Of 2 Stations


    Production Description


    35T Full Auto Injection Machine is widely used in making high quality phone backlight frame for Apple, Samsung,Huawei,Oppo,Vivo, Meizu and so on.

    35T Full Auto Injection Machine is equipped with ACC for speed up to 800mm/s and the frame thickness is only 0.3-5 mm.

    This machine is also equipped with servo valve which can control the machine to make the frame as exact as design.

    It is easy to design a robot to load and unload, no need labor and remote control.

    Here are some samples made by this machine




    More Details



    View video on Youtube


    https://youtu.be/hIFnpFBjJGQ


    Parameters:


    Injection Unit
    Screw Diametermm25-28
    Screw Strokemm140
    Shot Volumecm364-86
    Injection Weightg/oz63.8-80/2.2-2.8
    Plasticizing Capacityg/s6-8.2
    Max. Injection Pressurekgf/cm21960-1563
    Injection Ratecm3/s57-71
    Injection Speedmm/s116
    Screw Speedr.p.m.0-240
    Nozzle Forcetf4.8
    Nozzle Ejection Strokemm45 or more
    Clamping Unit
    Clamping Forcetf35
    Opening Forcetf

    7.8

    Clamping Strokemm200
    Min. Mold Heightmm150(200)-90(140)
    Max. Distancemm350(400)-290(340)
    Distance between Columnsmm
    Max. Mold Sizemm300*300
    Platens SizemmDiameter:780
    Ejector Strokemm75
    Ejector Forcetf2.7
    Qty of ejectorpcs3
    System Pressurekgf/cm2140
    General
    Oil Tank CpacityL200
    Motor PowerKW5.5
    Heater PowerKW3.6
    Temperature Stage2+1
    Working Table Heightmm980
    Dimensions
    Machine Sizemm1865*1500*2770
    WeightT2.1
    Packing Sizemm2000*1600*2000
    Packing WeightT2.5

    Key parts List


    ItemItem NameBrandOriginal of Country
    1PLCDIHZHOUTAIWAN
    2Screw and barrelHUAYECHINA
    3Servo MotorINOVANCECHINA
    4Electric motorUniversalCHINA
    5Seal kitHALLITEUnited Kingdom
    6Solenoid valvesYukenTaiwan
    7Proporional valvesYukenTaiwan
    8Hydraulic motorWhiteUnited States
    9Linear ScaleGefranItaly
    10Gear pumpEckerleGermany
    11Electrical ConnectorsSchneiderFrance
    12Tie barGenaralTaiwan
    13Heater bandsSchneiderFrance

    Accessory List


    1Injection Machinex1
    2Robotx1
    3Moldx2


    Optional Accessories(Charged)

    1Water Chillerx1
    2Grinderx1
    3Blenderx1
    4Dryerx1
    5Loading machinex1
    6Honeycomb Dehumidifiersx1
    7Mold Temperature Controllerx1

    Price List


    QTY=1 set19000-79000USD/setFOB Shenzhen
    QTY=2-5 set2-3% offUSD/setFOB Shenzhen
    QTY=6-10 set5-7% offUSD/setFOB Shenzhen
    MoreNegotiable

    After-sales service


    QTY=1 PCS,online technical support

    QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person

    QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.

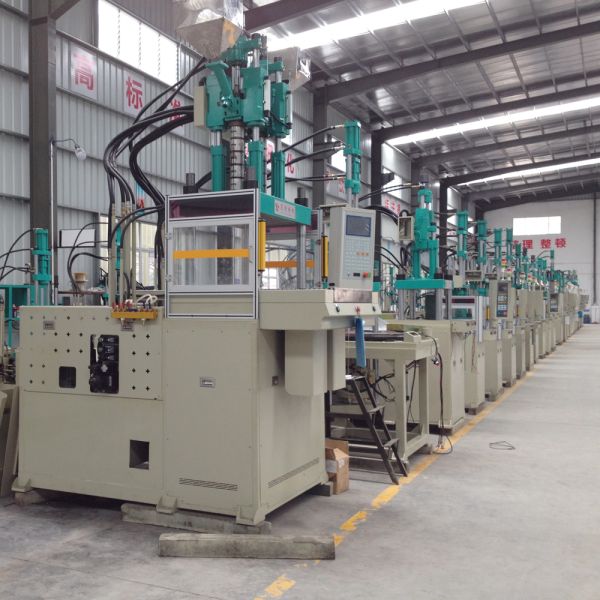

    Corner of Workshop
